CQB-G型高温磁力泵

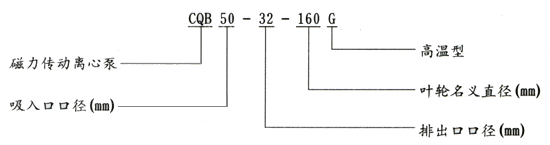

型  号

流量
Q
m³/h

扬程
H
m

汽蚀余量
(NPSH)r
m

转速
n
r/min

轴功率
pa
KW

效率
ゥ
%

配带电机功率KW

介质密度g/cm³

≤1

≤1.3

≤1.84

CQB32-20-125G

1.9
3.2
3.8

22
20
18.5

2900

0.49
0.58
0.62

23
30
31

Y^YB^801-2
1.1

Y^YB802-2
1.5

Y^YB90S-2
2.2

CQB32-20-160G

1.9
3.2
3.8

34
32
29

2900

0.84
0.99
1.03

21
28
29

Y^YB802-2
1.5

Y^YB90S-2
2.2

Y^YB90L-2
3

CQB40-25-105G

3.8
6.3
7.5

13
12.5
11

2900

0.42
0.55
0.56

32
39
40

Y^YB801-2
1.1

Y^YB802-2
1.5

Y^YB90S-2
2.2

CQB40-25-125G

3.8
6.3
7.5

22
20
18.5

2900

0.81
0.98
1.05

28
35
36

Y^YB802-2
1.1

Y^YB90L-2
2.2

Y^YB100L-2
3.0

CQB40-25-160G

3.8
6.3
7.5

34
32
29

2900

1.41
1.72
1.79

25
32
33

Y^YB90L-2
2.2

Y^YB100L-2
3.0

Y^YB112M-2
4.0

CQB40-25-200G

3.8
6.3
7.5

52.5
50
48

2900

3.02
3.43
3.77

18
25
26

Y^YB112M-2
4.0

Y^YB132S1-2
5.5

Y^YB132S2-2
7.5

CQB50-40-85G

7.5
12.5
15

9
8
7.5

3.5
3.5
4.0

2900

0.46
0.56
0.61

40
49
50

Y^YB801-2
0.75

Y^YB802-2
1.1

Y^YB90S-2
1.5

CQB50-32-105G

7.5
12.5
15

13
12.5
11

3.5
3.5
4.0

2900

0.76
0.91
0.94

35
47
48

Y^YB802-2
1.1

Y^YB90S-2
1.5

Y^YB90L-2
2.2

CQB50-32-125G

7.5
12.5
15

22
20
18.5

3.5
3.5
4.0

2900

1.49
1.62
1.63

30
42
43

Y^YB90L-2
2.2

Y^YB100L-2
3.0

Y^YB112M-2
4.0

CQB50-32-160G

7.5
12.5
15

34
32
29

3.5
3.5
4.0

2900

2.48
2.79
2.96

28
39
40

Y^YB100L-2
3.0

Y^YB112M-2
4.0

Y^YB132S1-2
5.5

CQB50-32-200G

7.5
12.5
15

52.5
50
48

3.5
3.5
4.0

2900

5.10
5.49
6.13

21
31
32

Y^YB132S2-2
7.5

Y^YB132S2-2
7.5

Y^YB160M1-2
11

CQB50-32-250G

7.5
12.5
15

82
80
78.5

3.5
3.5
4.0

2900

9.57
10.89
13.32

17.5
25
26

Y^YB160M2-2
15

Y^YB160L-2
18.5

Y^YB180M-2
22

CQB65-50-125G

15
25
30

22
20
18.5

3.5
3.5
4.0

2900

2.25
2.67
2.91

40
51
52

Y^YB100L-2
3.0

Y^YB112M-2
4.0

Y^YB132S1-2
5.5

CQB65-50-160G

15
25
30

34
32
29.5

3.5
3.5
4.0

2900

3.34
5.07
5.48

32
43
44

Y^YB132S1-2
5.5

Y^YB132S2-2
7.5

Y^YB160M1-2
11

CQB65-40-200G

15
25
30

53
50
47

3.5
3.5
4.0

2900

8.66
9.20
10.1

25
37
38

Y^YB160M1-2
11

Y^YB160M2-2
15

Y^YB160L-2
18.5

CQB65-40-250G

15
20
30

82
80
78.5

3.5
3.5
4.0

2900

13.4
14.72
16.88

25
37
38

Y^YB160L-2
18.5

Y^YB180M-2
22

Y^YB200L1-2
30

CQB80-65-125G

30
50
60

22.5
20
18

4.0
4.0
4.5

2900

4.48
5.24
5.55

41
52
53

Y^YB132S1-2
5.5

Y^YB132S2-2
7.5

Y^YB160M1-2
11

CQB80-65-160G

30
50
60

34
32
29

4.0
4.0
4.5

2900

7.72
9.08
9.67

36
48
49

Y^YB160M1-2
11

Y^YB160M2-2
15

Y^YB160L-2
18.5

CQB80-50-200G

30
50
60

53
50
47

4.0
4.0
4.5

2900

12.03
14.80
16.34

36
46
47

Y^YB160L-2
18.5

Y^YB180M-2
22

Y^YB200L1-2
30

CQB80-50-250G

30
50
60

84
80
75

4.0
4.0
4.5

2900

19.06
23.68
26.07

36
46
47

Y^YB200L1-2
30

Y^YB220L2-2
37

Y^YB225M-2
45

CQB100-80-125G,

60
100
120

23
20
16.5

4.0
4.0
4.5

2900

8.35
9.73
9.46

45
56
57

Y^YB160M1-2
11

Y^YB160M2-2
15

Y^YB160L-2
18.5

CQB100-80-160G

60
100
120

35
32
28

4.0
4.0
4.5

2900

12.43
15.85
16.34

46
55
56

Y^YB160L-2
18.5

180M-2
Y^YB22

Y^YB200L1-2
30

CQB100-65-200G

60
100
120

54
50
47

4.0
4.0
4.5

2900

21.01
25.69
28.44

42
53
56

Y^YB200L1-2
30

Y^YB220L-2
37

Y^YB225M-2
45

CQB100-65-250G

60
100
120

86
80
74.5

4.0
4.0
4.5

2900

37.98
45.39
49.69

37
48
49

Y^YB225M-2
45

Y^YB250M-2
55

Y^YB280S-2
75
